Dihr LP-Serie
Beschreibung
Die neue Technologie der LP Serie gibt Ihnen die Möglichkeit sämtliche Arbeitsgänge Ihrer Spülmaschine direkt auf einer Anzeige zu verfolgen. Die soft-touch Tastatur mit ihrem mehrfarbigen Bedienknopf (in den Modellen LP1S8/LP2S/LP3S/LP4S8 Plus) besitzt einen praktischen LCD Display, welches die Arbeitstemperaturen, den gewählten Waschzyklus und den momentanen Status anzeigt.

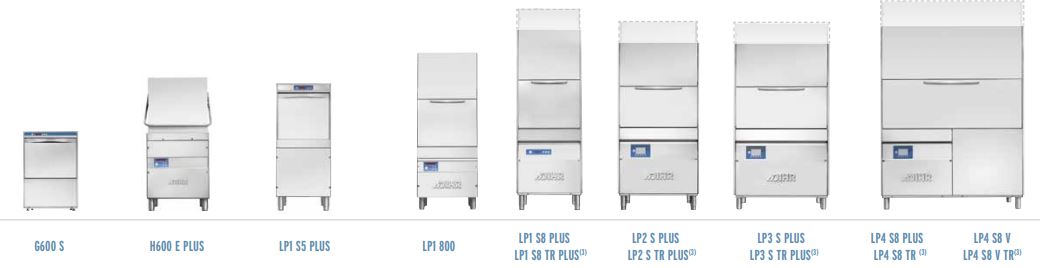

Modell | Körbe / Stunde | Waschvorgänge in Sek. |
Anschluss | Korb-Abmess. (L x B) | Abmessungen (B x T x H) |
---|---|---|---|---|---|
G600 S | 60 / 30 / 20 / 12 | 1,5 / 2 / 3 / 5 | 400 V, 6650 W | 500 x 500 mm | 600 x 680 x 860 mm |
H600 E Plus | 72 / 40 / 30 / 20 / 12 | 1 / 1,5 / 2 / 3 / 5 | 400 V / 10500 W | 500 x 500 mm | 720 x 735 x 1445 / 1915 mm |
LP1 S5 Plus | 60 / 30 / 20 / 12 | 1 / 2 / 3 / 5 | 400 V / 10120 W | 500 x 610 mm | 600 x 700 x 1380 mm |

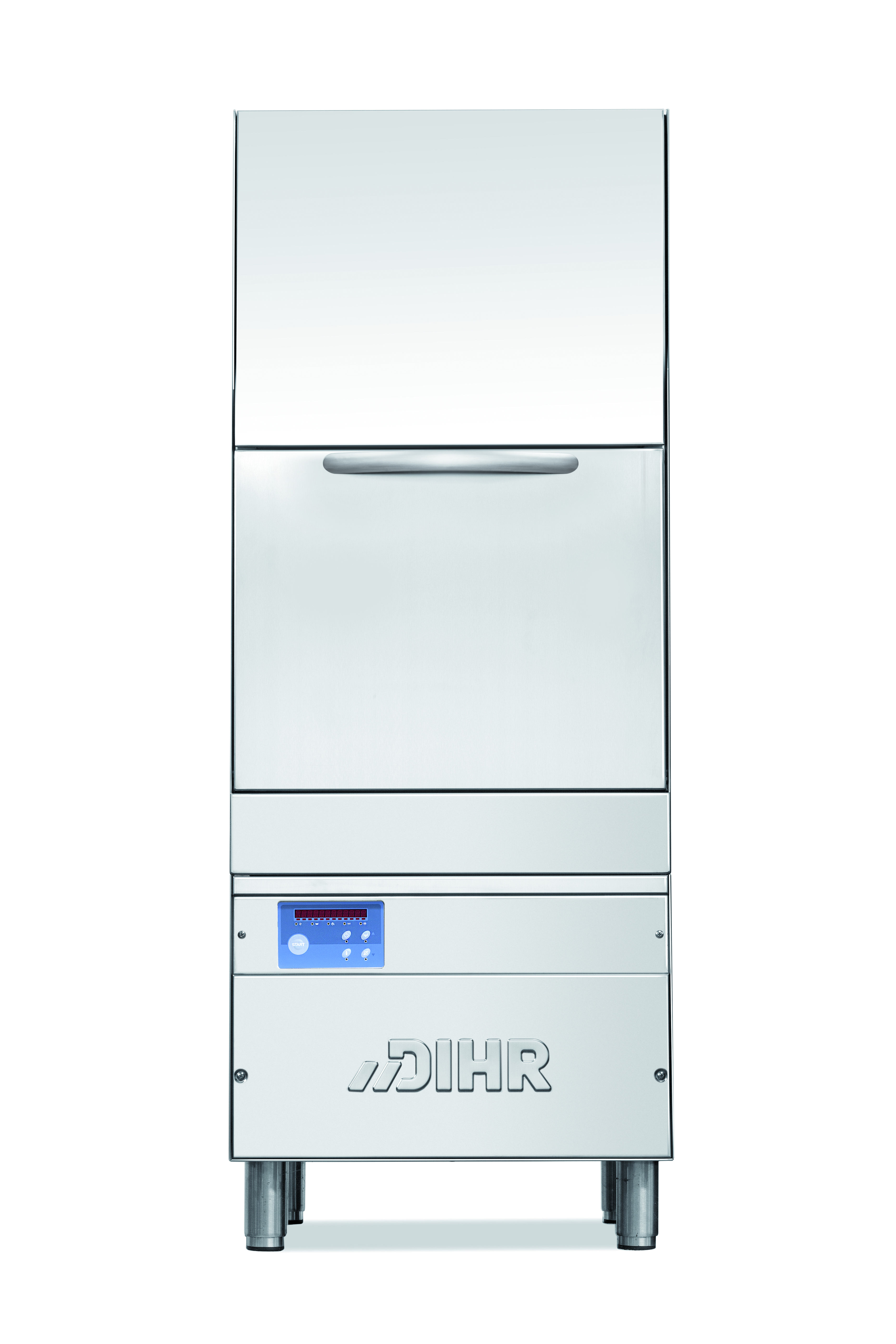

LP1 800 | 30 / 15 / 10 / 7,5 / 6 | 2 / 4 / 6 / 8 / 10 | 400 V / 8180 W | 550 x 665 mm | 650 x 750 x 1690 / 2070 mm |
LP1 S8 Plus | 30 / 15 / 10 / 7,5 | 2 / 4 / 6 / 8 / 10 | 400 V / 8180 W | 550 x 665 mm | 690 x 800 x 1890 / 2275 mm |
LP1 S8 TR Plus | 13 / 12 / 8 / 6,5 / 5,5 | 3 / 5 / 7 / 9 / 11 | 400 V / 8180 W | 550 x 665 mm | 690 x 800 x 2165 / 2275 mm |
LP2 S Plus | 20 / 10 / 6 / 5 | 3 / 6 / 9 / 12 | 400 V / 12500 W | 700 x 700 mm | 840 x 885 x 1790 / 2050 mm |
LP2 S TR Plus | 15 / 8 / 6 / 4 | 4 / 7 / 10 / 13 | 400 V / 12500 W | 700 x 700 mm | 840 x 885 x 2140 mm |
LP3 S Plus | 20 / 10 / 6 / 5 | 3 / 6 / 9 / 12 | 400 V / 13360 W | 850 x 725 mm | 990 x 885 x 1790 / 2050 mm |
LP3 S TR Plus | 15 / 8 / 6 / 4 | 4 / 7 / 10 / 13 | 400 V / 13360 W | 850 x 725 mm | 990 x 885 x 2140 mm |
LP4 S8 Plus | 20 / 10 / 6 / 5 | 3 / 6 / 9 / 12 | 400 V / 14800 W | 1350 x 725 mm | 1490 x 885 x 1790 / 2310 mm |
LP4 S8 TR | 13 / 8 / 5 / 4 | 4,5 / 7,5 / 10,5 / 13,5 | 400 V / 14800 W | 1350 x 725 mm | 1490 x 885 x 2320 mm |
LP4 S8 V | 20 / 10 / 6 / 5 | 3 / 6 / 9 / 12 | 400 V, 5800 W / 25 kg/h | 1350 x 725 mm | 1490 x 885 x 1970 / 2310 mm |
LP4 S8 V TR | 20 / 10 / 6 / 5 | 3 / 6 / 9 / 12 | 400 V, 5800 W / 25 kg/h | 1350 x 725 mm | 1490 x 885 x 2320 mm |
